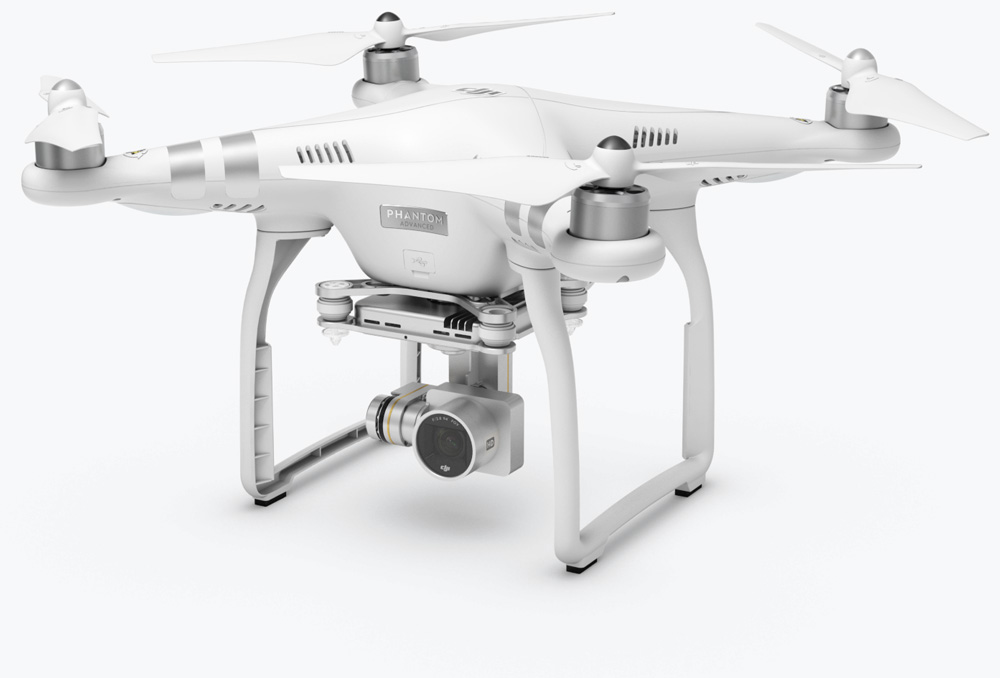

Meet our Phantom 3 Advanced by DJI

Drone specifications

MODEL

Phantom 3 Advanced

AIRCRAFT

Weight (including battery and propellers) 1280 g
Diagonal Size (Excluding Propellers) 350 mm
Max Ascent Speed 5 m/s
Max Descent Speed 3 m/s
Hover Accuracy

Vertical
+/- 0.1 m (when Vision Positioning is active) or +/- 0.5 m
Horizontal:
+/- 1.5 m

Max Speed 16 m/s (ATTI mode, no wind)
Max Service Ceiling Above Sea Level 6000 m (Default altitude limit: 120 m above takeoff point)
Operating Temperature 0°C to 40°C
GPS Mode GPS/GLONASS
Max Flight Time Approx. 23 minutes

GIMBAL

Controllable Range Pitch -90° to +30°
Stabilization 3-axis (pitch, roll, yaw)

REMOTE CONTROLLER

Operating Frequency 2.400 GHz-2.483 GHz
Max Transmission Distance Up to 5 km or 3.1 miles (unobstructed, free of interference) when FCC compliant
Up to 3.5 km or 2.1 miles (unobstructed, free of interference) when CE compliant
Operating Temperature 32° to 104° F ( 0° to 40° C )
Battery 6000 mAh LiPo 2S
Transmitter Power (EIRP)

FCC: 20 dBm
CE: 16 dBm

Operating Voltage 1.2 A @7.4 V

INTELLIGENT FLIGHT BATTERY

Capacity 4480 mAh
Voltage 15.2 V
Battery Type LiPo 4S
Energy 68 Wh
Net Weight 365 g
Operating Temperature 14° to 104° F ( -10° to 40° C )
Max Charging Power 100 W

CAMERA

Sensor Sony EXMOR 1/2.3” Effective pixels: 12.4 M (total pixels: 12.76 M)
Lens FOV 94° 20 mm (35 mm format equivalent) f/2.8, focus at ∞
ISO Range

100-3200 (video)
100-1600 (photo)

Shutter Speed 8s -1/8000s
Image Max Size 4000×3000
Still Photography Modes

Single Shot
Burst Shooting: 3/5/7 shots
Auto Exposure Bracketing (AEB): 3/5
Bracketed Frames at 0.7EV Bias
Time-lapse

Video Recording Modes

2.7K: 2704 x1520p 24/25/30 (29.97)
FHD: 1920x1080p 24/25/30/48/50/60
HD: 1280x720p 24/25/30/48/50/60

Supported SD Card Types Micro SD
Max capacity: 64 GB. Class 10 or UHS-1 rating required
Max Video Bitrate 40 Mbps
Supported File Formats FAT32 ( ≤ 32 GB ); exFAT ( > 32 GB )
Operating Temperature 32° to 104° F ( 0° to 40° C )
Photo JPEG, DNG
Video MP4, MOV (MPEG-4 AVC/H.264)

VISION POSITIONING

Velocity Range Less than 8 m/s (when 2 m above ground)
Altitude Range 30 cm-300 cm
Operating Range 50 cm-300 cm
Operating Environment Surface with clear pattern and adequate lighting (Lux > 15)

CHARGER

Voltage 17.4 V
Rated Power 57 W

APP / LIVE VIEW

Mobile App DJI GO
EIRP 100mW
Power Spectral Density 6.9mW/MHz
Live View Working Frequency 2.4GHz ISM
Live View Quality 720P @ 30fps (depending on conditions and mobile device)
Latency 220ms (depending on conditions and mobile device)
Required Operating Systems

iOS 8.0 or later
Android 4.1.2 or later
